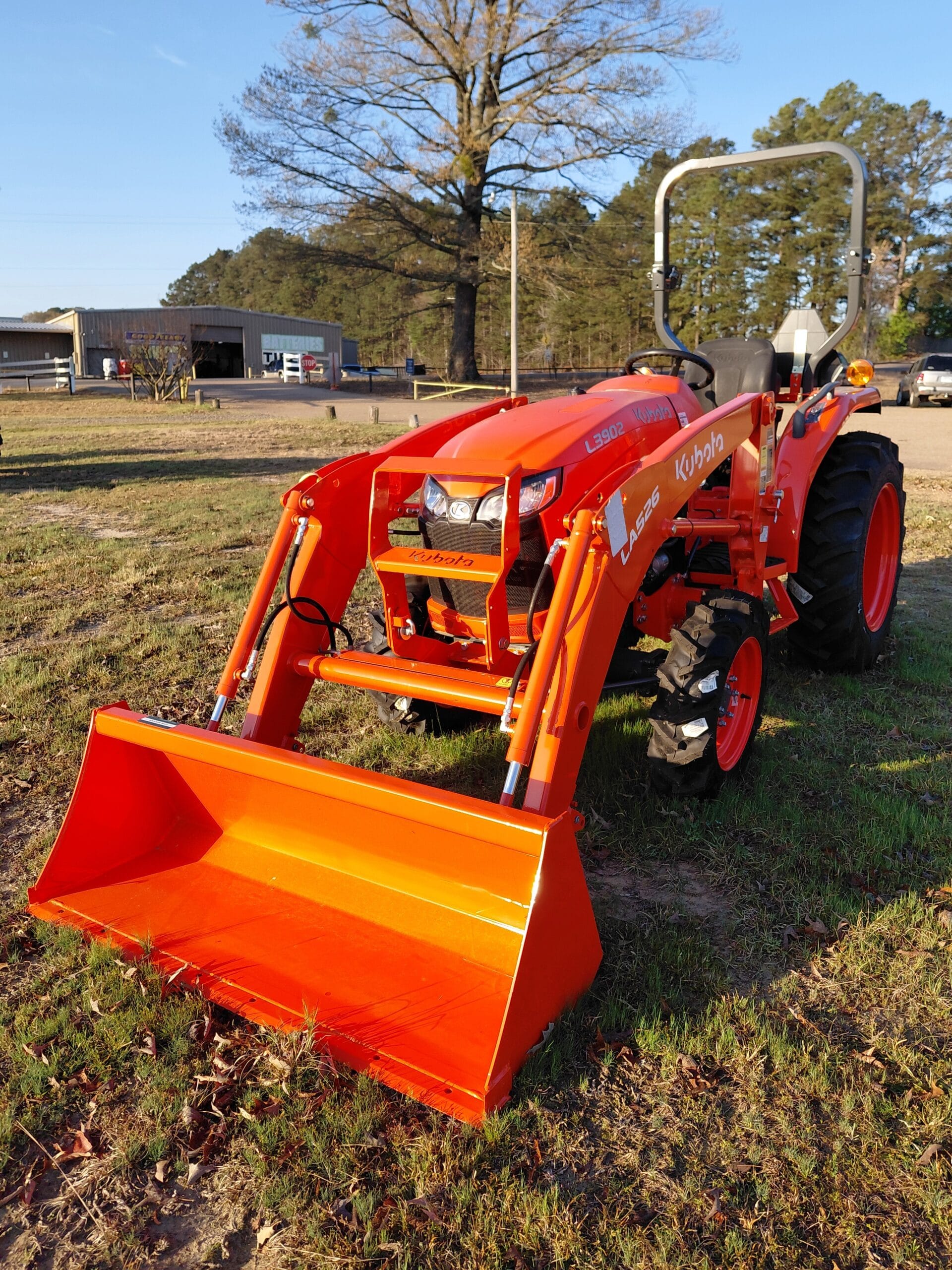

Kubota L3902DT
Call for Pricing
Price
25804
Stock #
Make:
Kubota
Model:
L3902DT
Year:
2025
Horsepower:
39
Category:
Kubota, New, Tractor
The 2026 Kubota L3902DT is a high-performance compact tractor designed for heavy-duty property maintenance, landscaping, and agricultural work. As part of Kubota’s L02 Series, it features a rugged, all-Kubota-built powertrain and a spacious, ergonomic operator platform. The “DT” designation indicates a manual gear-drive transmission combined with standard four-wheel drive (4WD), providing high mechanical efficiency and maximum power transfer for demanding tasks like plowing, tilling, and heavy loader work.
Technical Specifications
Engine
- Model: Kubota D1903
- Type: 3-Cylinder, Liquid-Cooled Diesel (Direct Injection)
- Gross Horsepower: 37.5 HP
- PTO Horsepower: 32.1 HP
- Displacement: 111.4 cu. in.
- Fuel Tank Capacity: 11.1 gallons
Drivetrain & Transmission
- Driveline Type: 4WD (Standard)
- Transmission Type: 8F / 8R Synchro-Shuttle (Manual Gear Drive)
- Transmission Speeds: 8 Forward / 8 Reverse
- Brake Type: Wet Disc Brakes
- Steering: Integral Power Steering
Hydraulics & 3-Point Hitch
- Hydraulic Pump Flow: 6.3 gpm
- 3-Point Hitch Type: Category I
- 3-Point Lift Capacity (24″ behind lift point): 1,435 lbs.
- Remote Hydraulics: Optional
Loader Performance (LA526 Loader)
- Max Lift Height (at pivot pin): 94.2 inches
- Lift Capacity (at pivot pin, max height): 1,144.4 lbs.
- Lift Capacity (at pivot pin, 1.5m height): 1,506.0 lbs.
- Bucket Size: 60-inch or 66-inch options (Quick-Attach available)
Dimensions & Weight
- Overall Length (with 3-point hitch): 108.5 inches
- Overall Width (min tread): 55.1 inches
- Overall Height (with ROPS): 91.7 inches
- Wheelbase: 63.4 inches
- Ground Clearance: 13.4 inches
- Tractor Weight (with ROPS): 2,778 lbs.
Standard Features
- Operator Station: Open platform with ROPS (Roll-Over Protective Structure).
- Comfort: Suspension seat, spacious semi-flat floor, and rubber floor mats.
- Visibility: LED headlights and side work lights for night operation.
- Controls: Ergonomic layout with easy-to-read dash panel (RPM, fuel, and temperature gauges).
- Durability: Heavy-duty cast steel front axle, transmission, and rear end; steel hood and fenders.
