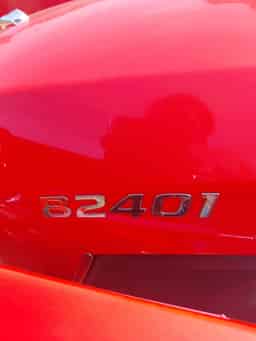

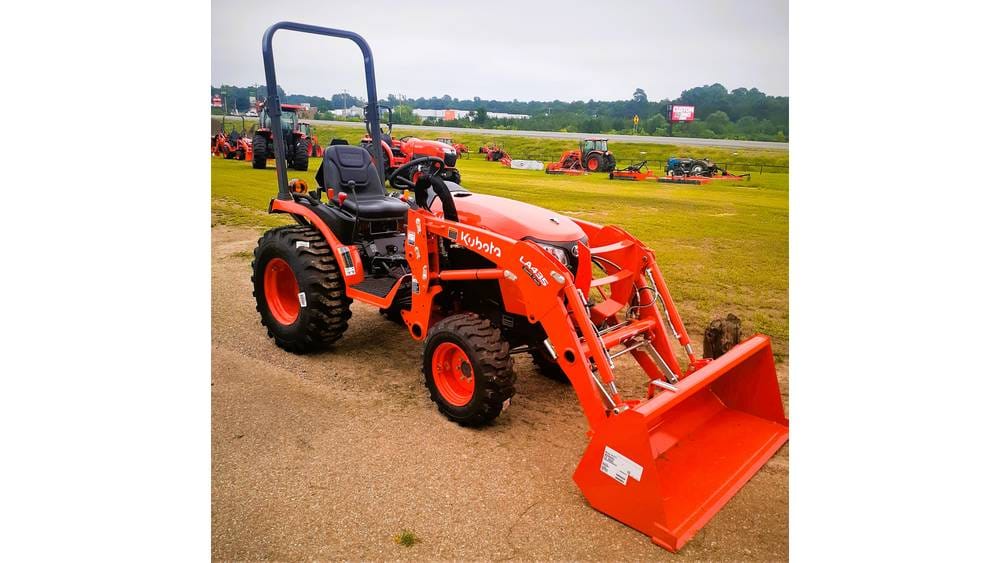

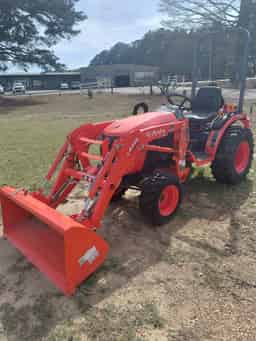

2020 Kubota B2401DT

Outfitted with a powerful Kubota diesel engine and 3-range HST or gear-drive transmission options, this compact tractor is stocked full of features like the drive-over mid-mount mower, powerful Category I three-point hitch, expansive operator platform with convenient 12V socket and much more!

Now being offered in the B01 lineup is the new B2401. Within the compact tractor market, the B2401 gear drive models are the answer to affordability, power, and functionality.

Engine

Type: E-TVCS, Liquid Cooled, 3 – Cylinder Diesel
Make: Kubota
Model: D1105
PTO Horsepower: 19.2 HP (14.3 kW)
Engine Gross HP*: 21.9 HP (16.3 kW)
Rated RPM: 2600
Bore and Stroke: 3.1 x 3.1 in. (78 x 78.4 mm)
Displacement: 68.5 cu. in. (1123 cc)
Air Cleaner: Dual Paper Element
Lubrication: Forced Lubrication
Cooling System: Pressurized Radiator
Radiator Fan: Radial Air Flow

Drivetrain

Transmission: Gear (9 Forward, 3 Reverse)
Differential Lock: Standard
Final Drive: Spur Gear
Brake: Multi-plate Wet Disc
Clutch: Dry single plate

Hydraulics

Type: Open Center
Pump: Dual Pump
Total Pump Output: 7.0 gpm. (26.4 l/min)
Hydraulic Outlet: Rear Outlet
3 – Point Hitch: Category I
Hydraulic Control System: Position Control Valve
Lift Capacity at Lift Point: 1653 lb. (750 kg.)
Lift Capacity at 24″ behind LP: 1290 lb. (585 kg.)
Steering: Integral type power steering

Standard Tire Size

Front (Farm): 6 – 12
Rear (Farm): 9.5 – 16

Dimensions

Overall Length (w/o 3P): 93.9 in. (2385 mm)
Overall Width (min. tread): 44.3 in. (1125 mm)
Overall Height: 83.9 in. (2130 mm)
Wheelbase: 61.4 in. (1560 mm)
Ground Clearance: 12.0 in. (305 mm)
Turning Radius with Brake: 6.9 ft. (2.1 m)
Weight: 1521 lb. (690 kg.)

Capacities

Fuel Tank: 6.1 gal. (23 L)
Cooling System: 4.0 qts. (3.8 L)
Engine Oil: 3.3 qts. (3.1 L)
Transmission Case: 3.3 gal. (12.5 L)

PTO

Type: Transmission driven with one way clutch
Rear rpm: 540, 1000
Mid rpm: 2500 RPM

Traveling Speeds

Forward: 0 – 11.7 mph (0 – 18.8 km/h)
Reverse: 0 – 6.0 mph (0 – 9.6 km/h)

Features

Kubota Reputation for “Built to Last”: The B01 Series is built by Kubota for Kubota, not a re-branded product built and distributed by multiple manufacturers. This allows for a performance-matched design that maximizes performance and efficiency, as well as a reliable, long-term parts and serviceability supplier for the life of the tractor.
Easy-to-Use: The B01 Series is built with not only long hours of use, but also first time operators in mind.
Kubota Reputation for Versatility: With a huge selection of Kubota Performance Matched implements and attachments, Kubota has what you need to get your work done. Whether it’s a front end loader, backhoe, front snow blower, mid-mount mower deck or a 3-point implement, Kubota has the right tool for the job.
Kubota Reputation for Quality: Kubota is known for its quality, reliability and longevity. You can’t fake a good reputation – it can only be awarded to you by your satisfied customers. Kubota takes pride in every machine built with importance placed on engineering excellence. This means that every product goes through strict testing during development so that Kubota owners can enjoy their safe, well-built tractor for many years to come.
Kubota Quality and Durability: With its Kubota engine and powertrain, the Kubota built B01 Series sets the standard for quality and durability. Adding to the longevity and strength are the metal hood and fenders, designed to last in the toughest conditions.
Kubota 4-Point Quick Connect Front Hitch & Front Attachments: The B01 front hitch enables front implements like blades, rotary sweeper and snow blowers to be easily attached and removed, making your tractor even more versatile.
Kubota-Built Mid-Mount Mower Decks: Description: Kubota offers a 54” and 60” mid-mount mower deck option, allowing you to choose which deck fits your needs best. These decks are built by Kubota and are designed to be easily mounted and dismounted by driving the tractor over the mower deck. Kubota also offers rear bagger options for both of these mowers.
Performance-Matched Kubota-Built Backhoe: Kubota’s backhoes are built by Kubota and specifically designed to maximize the performance of the backhoe and tractor
Performance-Matched Kubota-Built LA435 Swift-tach Loader: Why would you ever want to remove your front end loader? One good reason is that removing the front loader helps prevent ground compaction and turf damage when mowing. It also reduces your turning radius when working in confined areas or around trees. In fact, you’ll find that there are plenty of times that removing your front loader will make your job quicker and easier. That’s why it’s so important that the B01 series swift-tach front loader can be removed quickly, without ever leaving the operator’s station.
New Goodyear® R14 Hybrid Tire: The B01 Series offers a brand new tread type, Goodyear’s R14T tire. As a hybrid, the R14 tire combines elements of the agriculture, turf and industrial treads into one multi-purpose tire. The technology delivers high traction performance, with versatility in snow, lawn and field applications.
9FX3R Gear-Driven Transmission: The Kubota designed and built gear-drive transmission is equipped with 9 forward and 3 reverse speeds and 3 ranges (Low-Medium-High). The advantage to a gear-drive transmission is getting more power out of your transmission, especially in heavy-duty field applications, and is the most affordable option in the B01 Series. The gear-drive transmission is available on the B2401 and B2401 Narrow models.

Call for Pricing

13006KU
