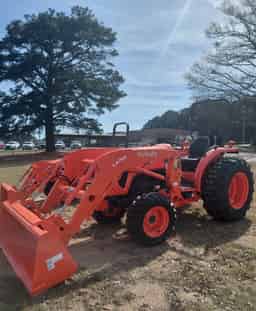

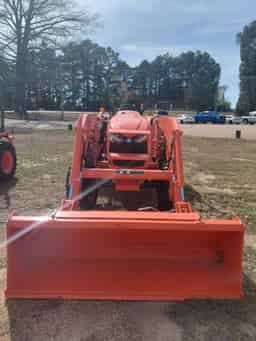

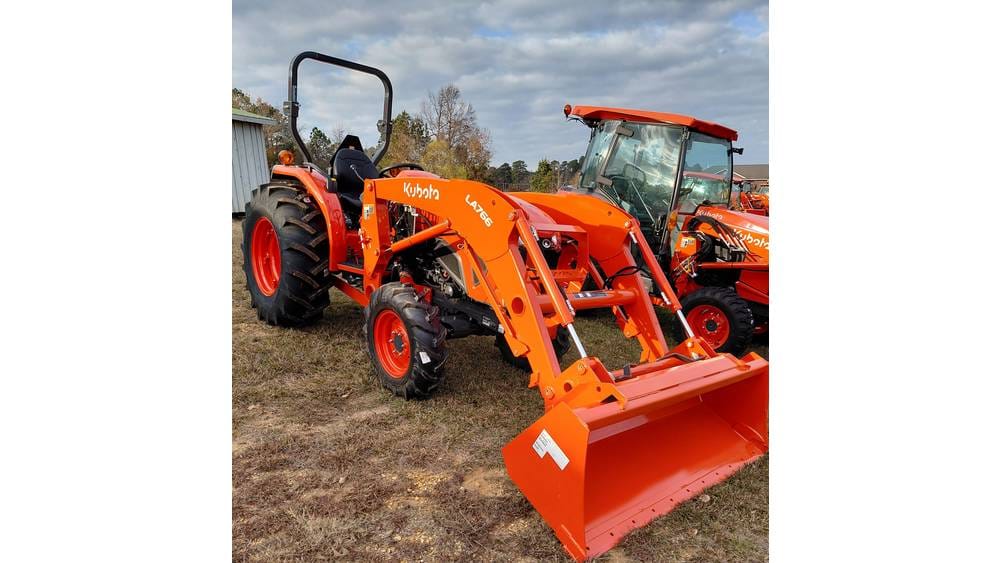

2025 Kubota L4802DT
Call for Pricing
Price
15779
Stock #
Make:
Kubota
Model:
L4802 Gear 4WD
Year:
2025
Horsepower:
48
Category:
Kubota, New, Tractor
The Kubota L4802DT is the powerhouse of the L02 Series, designed for those who require maximum horsepower and mechanical reliability in a compact frame. This 4WD gear-drive model is engineered for heavy-duty applications such as large-scale tilling, heavy brush cutting, and commercial landscaping. Featuring a synchronized shuttle transmission (8 forward/8 reverse), it allows for smooth directional changes, making it highly efficient for intensive loader work. The L4802DT combines a high-performance diesel engine with a heavy-duty chassis to provide superior traction and lifting performance for the most demanding property owners and contractors.
Technical Specifications
Engine & Power
- Engine Type: Kubota Liquid-Cooled, 4-Cylinder Diesel
- Engine Gross HP: 48.4 hp
- PTO Power: 40.5 hp
- Displacement: 148.5 cu. in.
- Emissions Rating: Tier 4 Final
- Fuel Tank Capacity: 13.5 gal
Drivetrain & Transmission
- Transmission: Gear Drive (F8/R8 Synchronized Shuttle)
- Speeds: 8 Forward / 8 Reverse
- Drive: 4WD (Four-Wheel Drive)
- Brakes: Wet Disc
- Steering: Integral Power Steering
Hydraulics & Hitch
- Hydraulic Pump Capacity (Main): 7.8 gpm
- Power Steering Pump Capacity: 4.7 gpm
- Total Hydraulic Flow: 12.5 gpm
- 3-Point Hitch: Category I & II
- Lift Capacity (24″ behind LP): 2,320 lbs
- PTO Type: Live-Independent Hydraulic PTO with Clutch Brake
Dimensions & Weight
- Overall Length (w/o 3P): 117.9 in.
- Overall Width (min tread): 62.4 in.
- Overall Height (with ROPS): 91.7 in.
- Wheelbase: 72.6 in.
- Ground Clearance: 14.2 in.
- Operating Weight: Approx. 3,935 lbs
Standard Features
- Spacious Flat Operator Station with Rubber Floor Mat
- Premium High-Back Suspension Seat with Armrests
- Modern LED Headlights and Standard LED Work Lights
- Large Fuel Tank for Extended Operation
- One-Piece Metal Hood with Easy-Access Maintenance Points
