The 2026 Kubota M5-111HDC24-1 is a specialized, high-performance utility tractor designed for demanding agricultural tasks. This model features a 24-speed Intelli-Shift transmission and a climate-controlled Grand CAB for maximum operator efficiency and comfort.

Engine Specifications

Engine Type: V3800 Tier 4 Final, 4-cylinder diesel with Turbocharger.
Horsepower (Net): 105.6 HP.
PTO Horsepower: 89.0 HP.
Displacement: 230 cubic inches (3.8L).
Fuel Capacity: 27.7 gallons.
DEF Tank Capacity: 3.2 gallons.

Transmission and Drivetrain

Transmission Type: F24/R24 Intelli-Shift Power Shift.
Speeds: 24 Forward / 24 Reverse.
Clutch Type: Multi-plate wet disc, hydraulically operated.
Shuttle: Electro-hydraulic Power Shuttle.
Brakes: Hydraulic wet disc.
Maximum Travel Speed: 25 mph.

Hydraulics and Hitch

Pump Capacity: 17.0 gallons per minute (Main).
Total Flow: 23.3 gallons per minute (Main + Steering).
Hitch Category: Category II 3-point hitch.
Lift Capacity at 24″: 5,181 lbs (Standard) / 7,275 lbs (Optional).
Remote Valves: 2 standard (expandable to 3).

Power Take-Off (PTO)

PTO Type: Independent, electro-hydraulic with brake.
PTO Speeds: 540 / 540E RPM standard (1,000 RPM optional).

Dimensions and Weight

Overall Length: 159.3 inches.
Overall Width: 83.9 inches.
Overall Height: 104.1 inches.
Wheelbase: 88.6 inches.
Operating Weight: Approximately 8,600 lbs.

Standard Features

Grand CAB II: Features heat, air conditioning, and a high-visibility roof panel.
Operator Seat: Deluxe mid-back suspension seat with armrests.
Lighting: Front halogen work lights and corner lights for night operation.
Loader Compatibility: Ready for the LA1854 front loader.

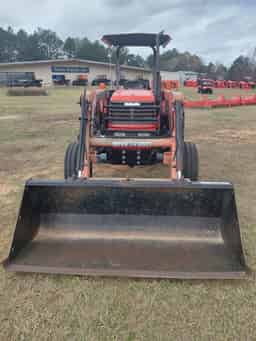

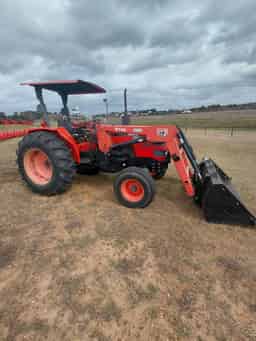

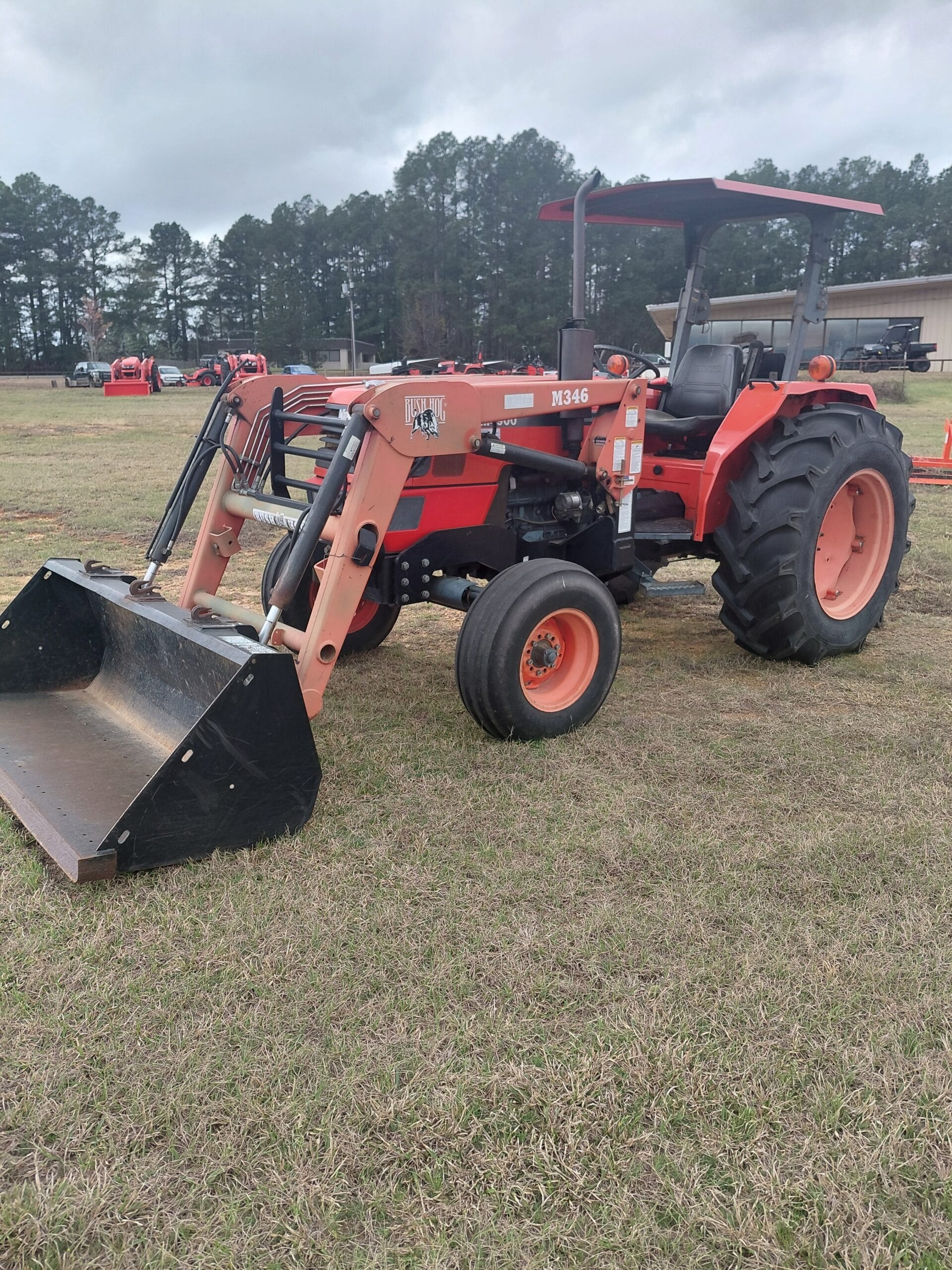

Used Kubota M4900/Bush Hog M346 Loader
