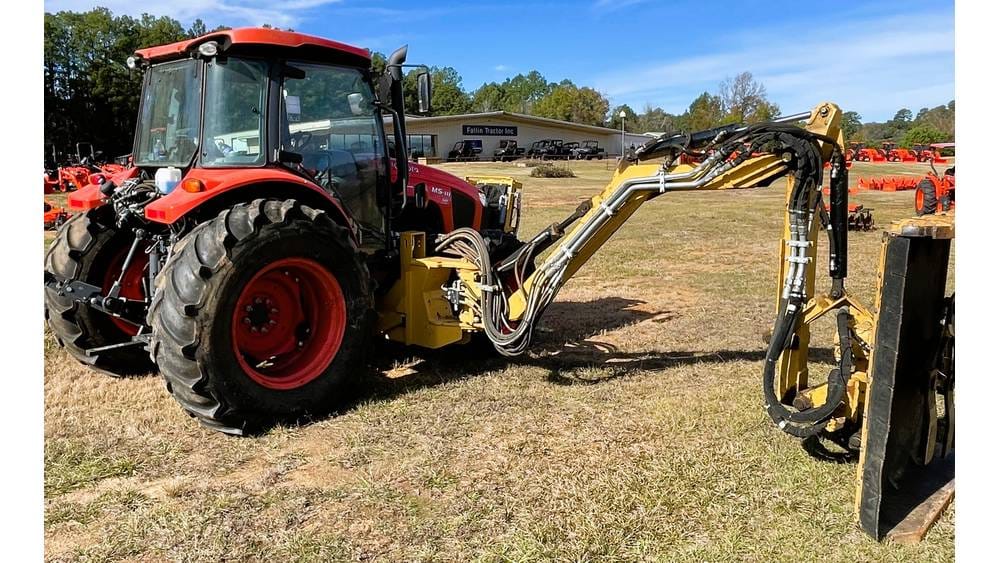

2021 Used Kubota M5-111HDC12 Tractor
Comes with 20′ Side Boom MOWER
Joystick Controls
The M5 Series tractors are designed inside and out with features to provide the small hay/cattle producer and part-time farmer with productivity and comfort. These include an extra wide cab, three transmission options and many other deluxe features you would expect to find on more premium tractors.
Engine
- Type: V3800CR-TIEF4, 4 Cylinder in-line, Common Rail Sytem, Direct injection, with Intercooler, DPF, DOC, SCR
- Make: Kubota
- No. of Cylinders / Aspiration: 4 / Turbocharged
- Rated Engine HP (97/68/EC): 105.6 HP (78.8 kW)
- Engine Net Power (SAE J1349): 100 HP (74.6 kW)
- PTO Power (at rated engine RPM): 89.0 HP (66.4 kW)
- Total Displacement: 230 cu. in. (3679 cc)
- Rated Engine RPM: 2600 RPM
- Fuel Tank Capacity: 27.7 gal. (105 L)
- Alternator: 80A
Transmission
- No. of Speeds: 12 Forward, 12 Reverse
- Main Gear Shift: Fully Synchronized, (6 Speed)
- Shuttle Shift: Electro-Hydraulic Shuttle
- Main Clutch Type: Multiple Wet Disc
- Brake Type: Hydraulic Wet Disc
- Differential Lock (Front / Rear): Limited Slip Differential
- 4WD Clutch Type: Mechanical On-the-go
PTO
- PTO Type: Live-Independent PTO, Electro-Hydraulic Clutch with Brake
- Speed: 540/540E RPM
Hydraulics
- Pump Capacity (3 – Point Hitch): 17.0 gal. (64.3 gal.)
- 3 – Point Hich: Telescopic Lower Link Ends, Telescopic Stabilizers
- 3 – Point Hich Category: II
- 3 – Point Hich Control System: Position, Draft (top link sensing) & Mixed Control
- Lift Capacity at 24″ behind LP (ISO): 6063 lb. (2750 kg.)
- Lift Capacity at 24″ behind LP (ASAE): 7275 lb. (3300 kg.)
- Cylinder Type: 2 External Cylinders
- No. of Standard Remote Valves: 1 (Max 3)
Standard Tires
- Front: 12.4 – 24 R1
- Rear: 18.4 – 30 R1
Other Features
- 4WD System: Bevel Gear Type with 55 degree Turning Angle
- Steering: Hydrostatic Power Steering
- Tilt Steering: Standard
- Hood Type / Pedal Type: Full Open, Slanted, Steel / Hanging
- Deck Type (w / rubber mat): Full Flat
- Panel Type: Electronic
- Roof Window: Standard
- RPM Memory: Standard
Dimensions & Weight
- Overall Length: 155.9 in. (3960 mm)
- Overall Height (top of CAB): 101.2 in. (2570 mm)
- Overall Width (minimum): 79.1 in. (2010 mm)
- Wheelbase: 88.6 in. (2250 mm)
- Crop Clearance (Front Axle): 19.7 in. (500 mm)
- Front Tread Width: 59.8 – 63.8 in. (1520 – 1620 mm)
- Rear Tread Width: 59.8 – 75.6 in. (1520 – 1920 mm)
- Minimum Turning Radius (w/o brake): 13.8 ft. (4.2 m)
- Tractor Weight (CAB): 7033 lb. (3190 kg.)
Features
- Ultra Grand Cab II: Kubota has raised the bar with regard to space and comfort on the M5 Series tractors. With a full flat floor, tilt steering and ergonomic controls, the M5 tractors make your hard day at work easy. The Ultra Grand Cab II has a built in sunroof with a retractable sun shade, giving you an excellent view of the loader when stacking bales. With the large degree of tilt steering adjustability and optional air ride seat, you’ll think your living room just got a new view.
- Great Maneuverability: The M5 Series also has the time tested Kubota bevel gear front axle, which allows for low maintenance, exceptional turning radius and better ground clearance when compared to traditional u-joint front axles. The bevel-gear front axle provides the M5 Series with greater all-around maneuverability, whether you’re in the tight confines of a barnyard or straddling tall windrows in a hay field. The limited slip differential on the front and differential lock on the rear are standard features, offering increased stability and traction on the challenging ground conditions.
- Transmission Options: F8/R8 Transmissions – Four speed synchronized main shift and a high/low range supply tractors with 8 Forward and 8 Reverse speeds; F12/R12 Transmissions (Factory Option) – Six speed synchronized main shift and a high/low range, giving it a total of 12 Forwards and 12 Reverse speed to help find the right speed for different applications; F24/R24 Transmission Non-Clutch Shift with Dual Speed (Factory Option) – Six speed synchronized main shift and Dual Speed offers instant upshifts and downshifts with the touch of a button and a high/low range. It offers 24 Forward and 24 Reverse speeds. This transmission will always have the right speed for any application; Overdrive (F12/R12 and F24/R24 models only) – The Overdrive function keeps the engine revolutions at around 2000 rpm during high speed driving for better fuel economy; Optional Creep – The dealer installed creep speed kit adds to the versatility by offering 4,6 or 12 more gears to the transmission offering based on the 8,12 or 24 speed transmissions.
NOTES:
Kubota tractor Corpration reserves the right to change the stated specifications without notice.
Some items shown may be optional and some products shown may not be available at all dealerships.
Power (HP/KW) and other specifications are based on various standards or recommended practices.For your safety, Kubota strongly recommends the use of a Rollover Protective Structure and seat belt in most applications.
Not for Sale in Nebraska.
