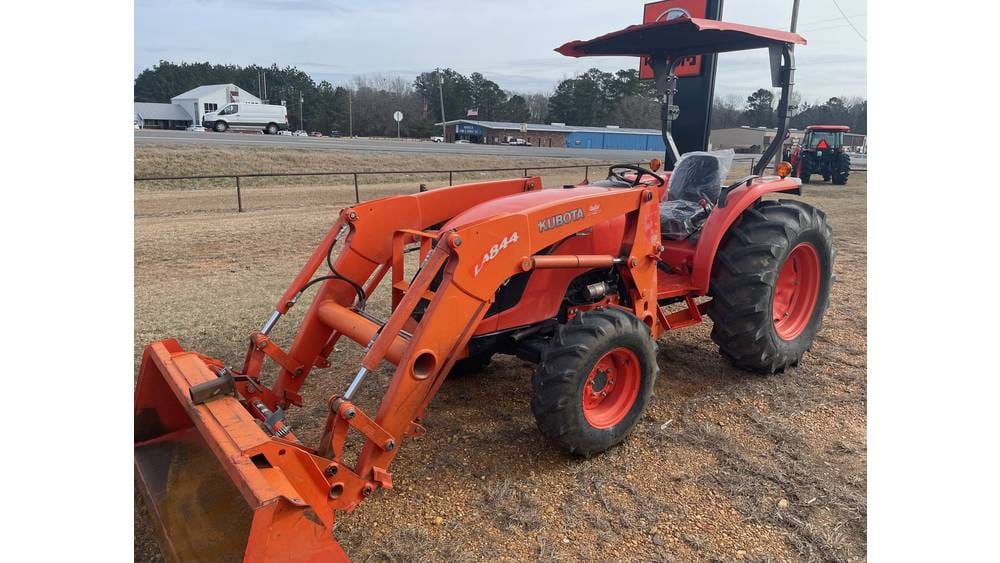

2012 Kubota Used MX5100DT

USED KUBOTA MX5100DT/KUBOTA LA844 LOADER
51 HSP 4-WHEEL DRIVE

• Engine Make/Model: Kubota V2403-M-T
• Type: E-TVCS, indirect injection, liquid-cooled diesel
• Engine gross horsepower HP (kW): 52.2 (38.9)
• Engine net horsepower HP (kW): 50.0 (37.3)
• PTO horsepower HP (kW): 44.0 (32.8)
• No. of cylinders / Aspiration: 4 / Turbocharged
• Displacement cu.in. (cc): 148.6 (2434)
• Fuel tank capacity gal. (L): 12.7 (48)
• Air Cleaner: Dry-dual element
• Alternator: 45 A

• No. of speeds: 8F/8R
• Main gear shift (4 speeds): Partially synchronized (3rd & 4th)
• Shuttle: Synchronized
• Main clutch: Dry single plate
• Brake: Mechanical wet disc
• Differential lock: Rear standard (mechanical)

• PTO type: Live independent, hydraulic PTO with PTO brake, wet clutch
• Speed: 540 rpm

• Pump capacity (main) gpm (Lpm): 9.5 (35.8)
• Power steering gpm (Lpm): 4.9 (18.6)
• 3-point hitch: Category I & II
• Control system: Position (std), Draft (opt)
• Lift capacity at 24 in. behind lift point lb. (kg): 2310 (1050)
• No. of remote valves: Maximum 3 (opt)

• Front: 9.5-16
• Rear: 14.9-26

• 1st Forward / Reverse mph (km/h): 1.0 (1.6) / 0.9 (1.5)
• 2nd Forward / Reverse mph (km/h): 1.4 (2.2) / 1.3 (2.1)
• 3rd Forward / Reverse mph (km/h): 2.3 (3.6) / 2.1 (3.3)
• 4th Forward / Reverse mph (km/h): 3.3 (5.4) / 3.1 (4.9)
• 5th Forward / Reverse mph (km/h): 4.7 (7.6) / 4.3 (7.0)
• 6th Forward / Reverse mph (km/h): 6.7 (10.8) / 6.7 (9.9)
• 7th Forward / Reverse mph (km/h): 10.9 (17.5) / 10.0 (16.1)
• 8th Forward / Reverse mph (km/h): 16.0 (25.9) / 14.7 (23.7)

• 4WD drive system: Bevel gear type
• Steering: Hydrostatic power type
• Hood type/Pedal type: Full open hood/Hanging pedals
• Deck type: Flat

• Overall length (w/o 3P) in. (mm): 122.8 (3120)
• Overall height (top of ROPS) in. (mm): 95.7 (2430)
• Overall width in. (mm): 69.7 (1770)
• Wheelbase in. (mm): 74.6 (1895)
• Ground clearance in. (mm): 15.2 (385)
• Tread Front in. (mm): 52.2 (1325)
• Tread Rear in. (mm): 54.1-58.7 (1375-1490)
• Turning radius (with brake) ft. (m): 8.9 (2.7)
• Tractor weight lb. (kg): 3620 (1642)
